Aperçu /Produits/Montage de polissage/High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type

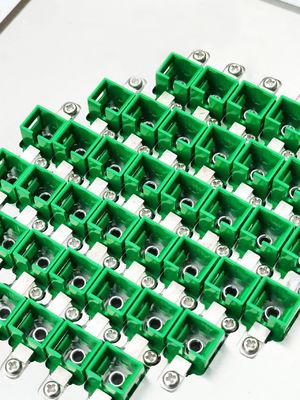

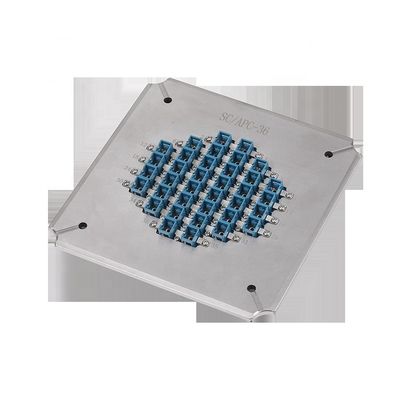

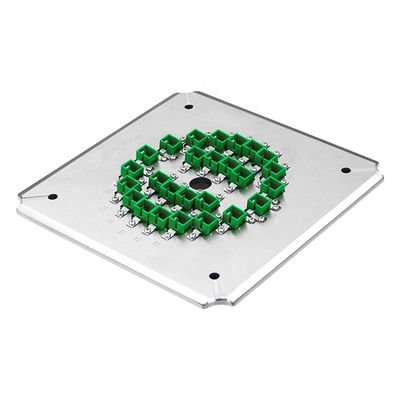

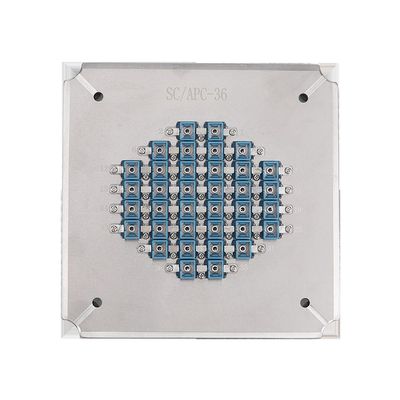

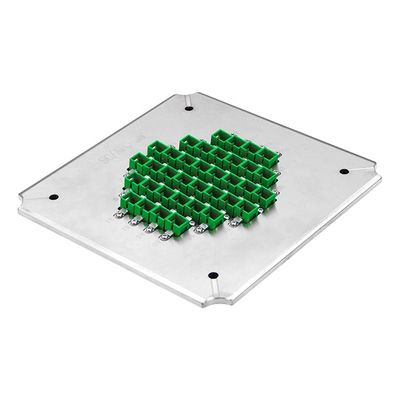

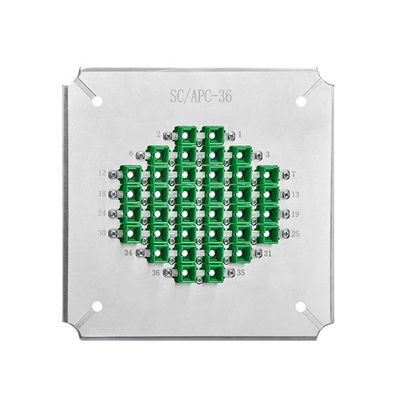

High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type

1
MOQ
$268.56-365.16
Prix
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Matériel: Acier inoxydable trempé2316
Type de connecteur: connecteur de Sc RPA
Taille: 174*174*26mm
Diamètre de la ferule: 2.50mm
Poids net: 1,5 kilogrammes
Poids brut: 2,0 KILOGRAMMES
Nombre de fibres: 36 postes
Perte: ≤0,20 dB
Pertes de rendement: ≥ 60 dB (APC)
Fin-visage: APC
Capacité: 36 postes
Rayon de courbure: 5-12 mm
Décalage du sommet: 0-50μm
Hauteur des fibres: -100~+50μm
Angle: 8.00+/-0.50°
Mettre en évidence:

High Stability Polishing Fixture

,

Good Surface Quality Fiber Polishing Plate

,

Easy to Change Jigs Fiber Optic Polishing Jig
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: Chuanglixun
Certification: ce
Numéro de modèle: SC-APC-36
Conditions de paiement et expédition
Description de produit
Fiber Optic Connectors SC APC Polishing Jig
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 0
This high-stability fiber polishing fixture delivers excellent surface quality for SC APC connectors. Constructed from heat-treated hardened steel S2316 for durability, it supports various connector types including SC, FC, ST, and LC, with custom configurations available.
Key Features
  • Specifically designed for SC/APC connectors
  • Quick-change jig system for simple operation
  • High-efficiency polishing of 26 or 36 connectors per cycle
  • 98%-100% first-pass yield for end face quality
  • IPC structure with independent compression for each connector
  • Replaceable accessories extend service life
  • APC return loss ≥60dB, insertion loss ≤0.20dB (typical)
Technical Specifications
Model SC-APC-18 SC-APC-26 SC-APC-36
Brand CLX CLX CLX
Connector Type SC APC SC APC SC APC
End-face APC APC APC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 26 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥60dB (APC) ≥60dB (APC) ≥60dB (APC)
Application Polishing assembled SC APC connectors
Material Stainless Steel S136
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar models
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 1
Polishing Performance
1. Polished Connector Ferrule Faces
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 2
High-quality end-face polishing with no white spots or scratches. Fiber edges remain clearly visible for optimal performance.
2. ILRL Test Results
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 3
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
3. Geometry Test Results
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 4
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. has been a leading optical communications equipment manufacturer since 2010. We specialize in R&D, production, and technical support for fiber optic connector solutions.
Shipping & Support
We ship worldwide via DHL, FEDEX, UPS, EMS, TNT or Sea. Customers may provide their preferred courier account for optimized shipping costs.
Frequently Asked Questions
1. Are you a factory or a trader?
We are the factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, samples are available.
4. How will you ship to me?
4-6 days via DHL or FedEx, depending on order quantity.
5. How do we pay?
Multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty with free repairs (consumables excluded). Post-warranty support available at cost.
7. Do you provide customized services?
Yes, we offer custom solutions based on customer requirements.
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type 5
