High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way

1
MOQ
$210.23-230.51
Prix
High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Poids net: 1,2 kg
Taille: 174 mm x 174 mm x 5,1 mm
Nombre de fibres: 24
Matériels: acier inoxydable dur S136
Perte: ≤0,20 dB
Pertes de rendement: ≥55dB (PC), ≥60dB (APC)
Dimensions: 174mm*174mm*26mm
Poids: 1,3 kg
Matériel: Acier inoxydable trempé s136
Type de connecteur: SM/UPC, SM/APC, MM/UPC
Rayon de courbure: 5-25 mm (UPC), 5-12 mm (APC)
Décalage du sommet: 0-50μm
Hauteur des fibres: -100~+50μm
Angle: 8,00+/-0,50° (APC)
Efficacité de polissage: 24 connecteurs
Mettre en évidence:

High Stability Polishing Fixture

,

Good Surface Quality Polishing Jig

,

Independent Pressurized Way Fiber Optic Polishing Fixture
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: chuanglixun
Numéro de modèle: SC UPC, SC/UPC
Conditions de paiement et expédition
Description de produit
SC PC-24 Port SC UPC Fiber Optic Connector Polishing Fixture
High-stability polishing jig for patch cord production, featuring hardened steel construction for long service life and excellent surface quality. Custom configurations available for SC, FC, ST, LC connectors and other types upon request.
Key Features
  • Designed for four-corner polishing machines to process SC UPC connectors
  • Independent pressurized system eliminates ferrule length variation effects
  • Holds 24 connectors simultaneously for high production efficiency
  • Interchangeable plugs extend fixture lifespan
  • Manufactured from hardened stainless steel S136 for durability
  • Custom configurations available to meet specific requirements

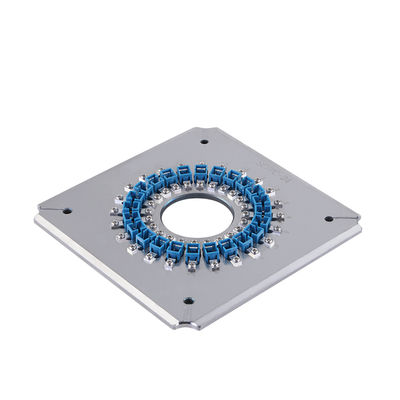

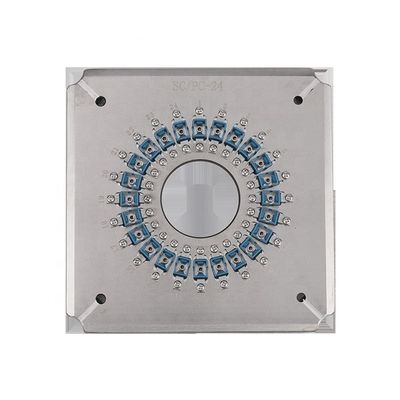

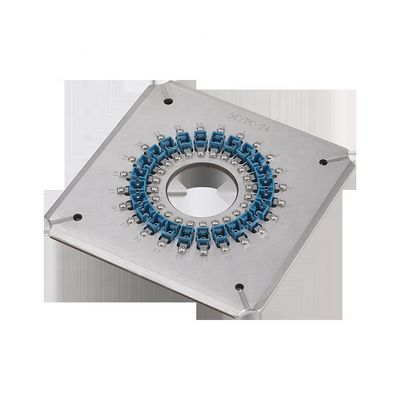

High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way 0 High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way 1 High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way 2
Technical Specifications
Place of Origin China
Brand Name Chuanglixun
Type Fiber Optic Polishing Jig
No. of Fiber 24 positions
Application FTTH, Fiber Optic Patch Cord Production
Dimensions 174mm × 174mm × 26mm
Weight 1.3kg
Material Hardened stainless steel S136
Package Cushion Pads and carton case
MOQ 1PCS
High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way 3
Polishing Performance
Polished Connector Ferrule Faces
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges.
High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way 4
ILRL Test Results
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way 5
Geometry Test Results
No. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way 6
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. (established 2010) specializes in optical communications equipment, offering R&D, production, and technical support services for fiber optic connector production challenges.
High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way 7
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
Shipping via DHL or FedEx takes 4-6 days (may vary based on order quantity).
5. How do we pay?
Multiple payment methods available including T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). Post-warranty support available at cost.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
High Stability SC UPC Fiber Optic Polishing Fixture with Good Surface Quality and Independent Pressurized Way 8
