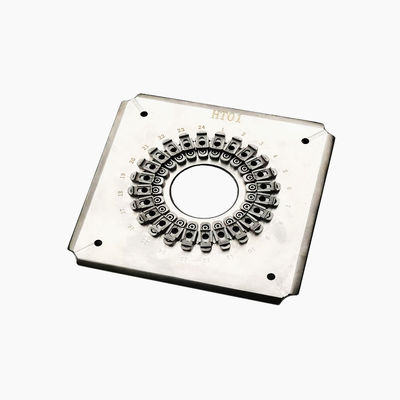

Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight

1
MOQ
$549.23-592.12
Prix
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Poids net: 1,3 kg
Nombre de fibres: 1
Matériel: Acier inoxydable trempé s136
Dimensions: 174mmx174mmx26mm
Perte: ≤2,3dB
Longueur de vague: 650 nm
Température de fonctionnement: -40°C ~ + 70°C ,-55°C ~ + 85°C
atténuation: ＜180dB/km
Poids brut: 1,5 kilogrammes
Capacité de polissage: Max 24 connecteurs en un cycle
Rendement au premier passage: 98 % ～ 100 %
Taux de réussite des interférences: ≥ 98 % (100 % typique)
Machines appropriées: Polisseuse CLX-02E, polisseuse Seikoh Giken SFP-550
Type de fibre: Fibre optique en plastique
Modèles de connecteur: HFBR-4501Z, HFBR-4511Z
Mettre en évidence:

Hardened Stainless Steel S136 Polishing Fixture

,

HFBR-4501Z/HFBR-4511Z Polishing Fixture

,

2 Year Warranty Polishing Fixture
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: chuanglixun
Certification: RoHS
Numéro de modèle: HFBR4501Z/HFBR4511Z, HFBR4501Z/HFBR4511Z
Conditions de paiement et expédition
Description de produit
Factory Custom Plastic Optical Fiber Patch Cord Polishing Fixture
Avago HFBR-4501Z/HFBR-4511Z Connector Polishing Jig
This high-stability fiber polishing fixture delivers excellent surface quality for plastic optical fiber connectors. Manufactured from hardened steel S2316 with heat treatment for extended service life, it's designed for HFBR series connectors and customizable to customer requirements.
Key Features
  1. Compatible with HFBR-4501Z/HFBR-4511Z plastic optical fiber connectors
  2. Quick-change jig system for simple, flexible operation
  3. High-efficiency design polishes up to 24 connectors per cycle with 98-100% first-pass yield
  4. IPC structure with independent compression for each connector
  5. Replaceable accessories extend fixture lifespan
  6. Heat-treated hardened steel S136 construction for durability
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 0 Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 1 Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 2
Technical Specifications
Specification Detail
Product Name Plastic optical fiber patch cord polishing fixture
Model HFBR-4501Z/HFBR-4511Z
Insertion Loss ≤2.3dB (connection loss excluded)
Brand Chuanglixun
Wavelength 650nm
Attenuation <180dB/km
Material Hardened stainless steel S136
Dimensions 174mm × 174mm × 26mm
Weight 1.3 kg (Net), 1.5 kg (Gross)
Compatible Machines CLX-02E polishing machine, Seikoh Giken SFP-550, and similar models
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 3
Get a free quotation →
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. (established 2010) specializes in optical communications equipment with integrated R&D, production, and technical support services.
Hardened Stainless Steel S136 Polishing Fixture for HFBR-4501Z/HFBR-4511Z with 2 Year Warranty and 1.3 kg Net Weight 4
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide samples?
Yes, samples are available.
What are your shipping methods?
Standard delivery via DHL or FedEx takes 4-6 days (may vary by quantity).
What payment methods do you accept?
We accept advance booking, T/T, and T/L payments.
What is your warranty policy?
1-year warranty covering free repairs (excluding consumables). Post-warranty support available at cost.
Do you offer customization?
Yes, we provide custom solutions based on customer requirements.
Request a free quotation →
