Aperçu /Produits/Montage de polissage/High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%

High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%

1
MOQ
$149.12-168.25
Prix
High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Poids net: 0,5 kg
Matériel: durcissez l'acier inoxydable
Taille: 110*5mm
Nombre de fibres: 12
Taux de réussite 3D: ≥98%
Perte: ≤0,20 dB
PC de perte de retour: ≥55 dB
Perte de retour APC: ≥60db
Type de connecteur: SC, FC, LC, ST, MU, E2000 (PC/APC)
Type de machine à polir: Machine de polissage à pression centrale
Nombre de noyaux de fibre: 12
Structure de la CIB: Compression indépendante de chaque connecteur
Type d'acier: acier trempé S2316
Rendement au premier passage: 100%
Taux d'interférence: ≥98%
Mettre en évidence:

12 Port Polishing Fixture

,

110*5mm Fiber Optic Polishing Jig

,

3D Pass Rate ≥98% Polishing Plate
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: chuanglixun
Numéro de modèle: ST/PC
Conditions de paiement et expédition
Description de produit
Factory Direct Sales High Efficiency ST UPC 12 Port Optical Fiber Cable Connector Polishing Plate Fixture

This high-efficiency fiber polishing fixture features an IPC structure with independent compression for each connector. With a pass rate of ≥98% (typically 100% according to IEC standards), it delivers exceptional stability and surface quality for optical fiber connectors.

Key Features
  • Designed for ST/PC and ST/UPC connector polishing
  • High efficiency - polishes 12 ferrules in one cycle
  • Replaceable holders for cost-effective polishing
  • Complies with IEC standards for geometry dimensions
  • 100% first pass yield for end face quality
Technical Specifications
Model ST/PC, ST/UPC
Net Weight 0.5kg
Connector Type SC, FC, LC, ST, MU, E2000 (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 12
Material Hardened stainless steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty 24 months
Product Gallery

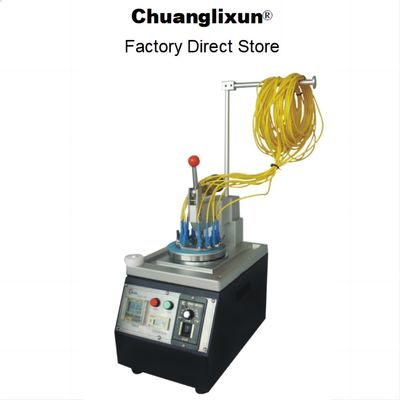

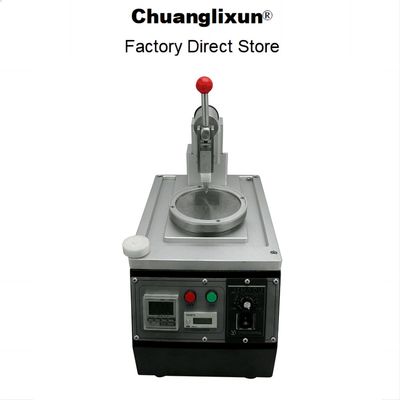

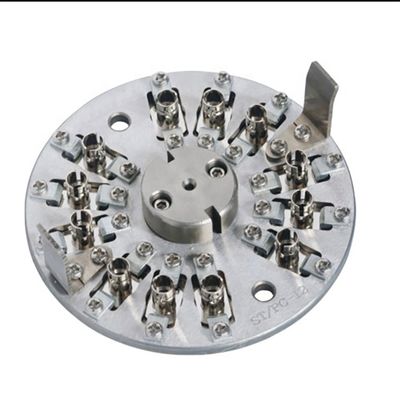

High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 0 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 1 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 2

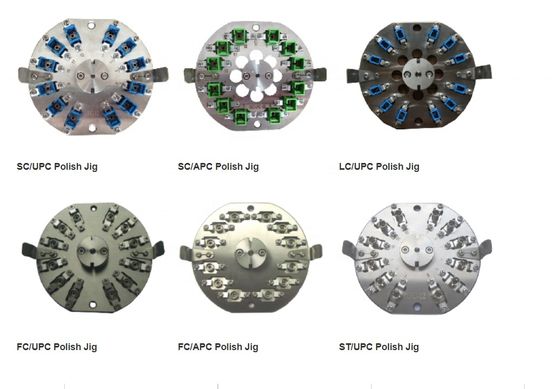

Available Models
High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 3 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 4 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 5
Frequently Asked Questions
Are you a factory or a trader?
We are the factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4-6 days (may vary based on order quantity).
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-based replacement parts.
Do you provide customized services?
Yes, we offer customization according to customer requirements.
