High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors

1
MOQ
$199.12-218.45
Prix
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Poids net: 0,5 kg
Matériel: durcissez l'acier inoxydable
Taille: 110*5mm
Nombre de fibres: 12
Taux de réussite 3D: ≥98%
Perte: ≤0,20 dB
Pertes de rendement: ≥55dB (PC) ≥60dB (RPA)
Type de connecteur: SC, FC, LC, ST, MU, E2000 (PC/APC)
Type de machine à polir: Machine de polissage à pression centrale
Nombre de noyaux de fibre: 12
Structure de la CIB: Compression indépendante de chaque connecteur
Taux de réussite des interférences: ≥98 % (100 % typique, selon CEI)
Qualité de surface: Haute stabilité et bonne qualité de surface
Type d'acier: acier trempé S2316
Rendement au premier passage: 100%
Mettre en évidence:

12 Port Polishing Fixture

,

110*5mm Fiber Optic Polishing Fixture

,

3D Pass Rate ≥98% ST UPC Polishing Fixture
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: chuanglixun
Numéro de modèle: ST/PC
Conditions de paiement et expédition
Description de produit
Factory Direct Sales High Efficiency ST UPC 12 Port Optical Fiber Cable Connector Polishing Plate Fixture

The fiber polishing fixture features an IPC structure with independent compression for each connector. With an interference pass rate ≥98% (typically 100% according to IEC standards), this fixture delivers high stability and excellent surface quality.

Constructed from high-quality heat-treated steel, the hardened S2316 steel ensures long service life. The fixture is compatible with SC, FC, ST, LC, MPO, E2000, FA connectors and can be customized to meet specific customer requirements.

Key Features
  • Designed for ST/PC and ST/UPC connector polishing
  • High efficiency - polishes 12 ferrules in one cycle
  • Replaceable holders reduce polishing costs
  • Polished ferrule dimensions comply with IEC standards
  • 100% first-pass yield for end face quality
Technical Specifications
Model ST/PC, ST/UPC
Net Weight 0.5kg
Connector Type SC, FC, LC, ST, MU, E2000 (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 12
Material Hardened stainless steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty Period 24 months
Product Images

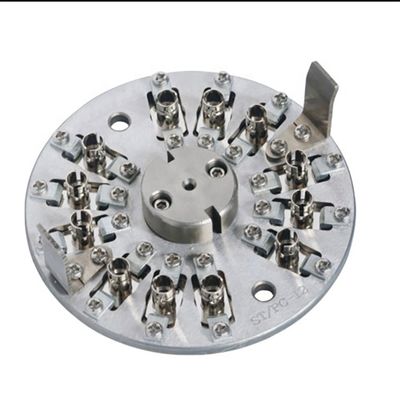

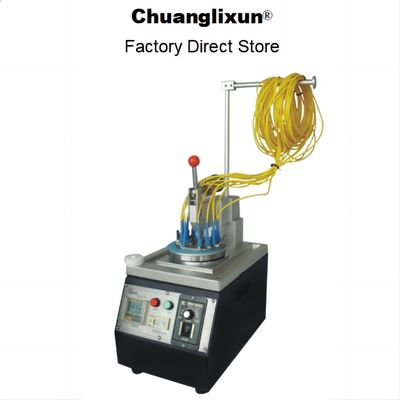

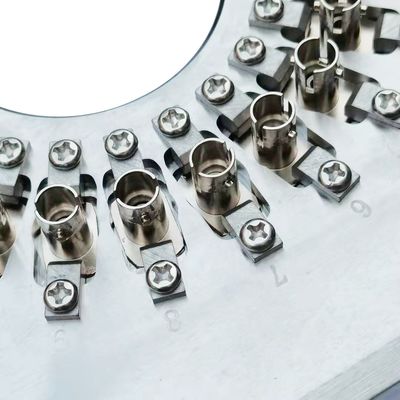

High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 0 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 1 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 2

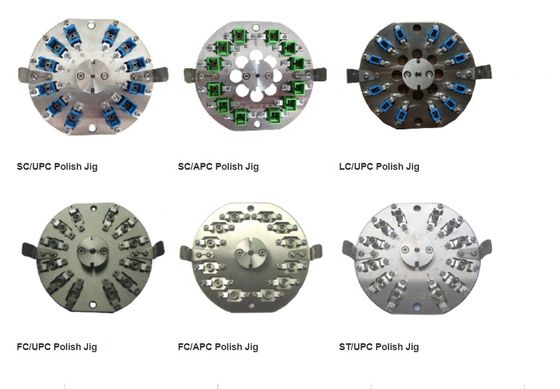

Available Models
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 3 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 4 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 5
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
We ship via DHL or FedEx (4-6 days). Delivery time may vary based on order quantity.
5. How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-based replacement parts.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
