Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force

1
MOQ
$400-414
Prix
Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Taille de la machine: 92,5(L)x 46(P)x 31,5(H)mm
Poids net: 260 g
Puissance électrique: 126w
Humidité relative: 15%~85%
Arrangement de température: 80 ℃ /100 ℃/ 120 ℃ /130 ℃
Alimentation: Adaptateur pour convertir DC12V
Méthode de dépouillement: Guidage d'axe linéaire + ensemencement à chaud
Longueur de décapage: Jusqu'à 35 mm
Capacité du cœur de fibre: Fibre de ruban de 2 à 12 cœurs
Perte d'insertion SM/UPC: ≤0,20 dB
Perte d'insertion MM/UPC: ≤0,50 dB
SM de perte de retour: ≥55 dB
perte de retour millimètre: ≥30dB
Rayon de courbure: 5-25 mm (UPC), 5-12 mm (APC)
Décalage du sommet: 0-50μm
Mettre en évidence:

Thermal Jacket Fiber Stripper

,

Single Fiber Stripping Auto Stripper

,

80% Reduced Stripping Force Fiber Stripper
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: CLX, CLX
Numéro de modèle: CLX-JX240, CLX-JX240
Conditions de paiement et expédition
Description de produit
CLX-JX240 Thermal Jacket Stripper to Strip Single Fiber and Ribbon Fibers Auto Ribbon Fiber Stripper

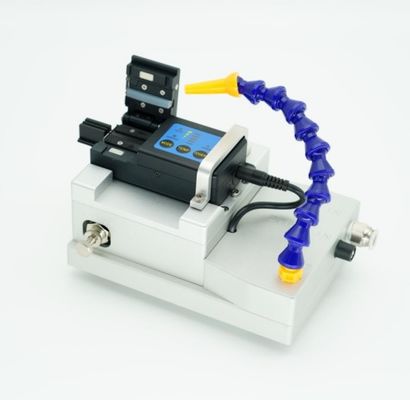

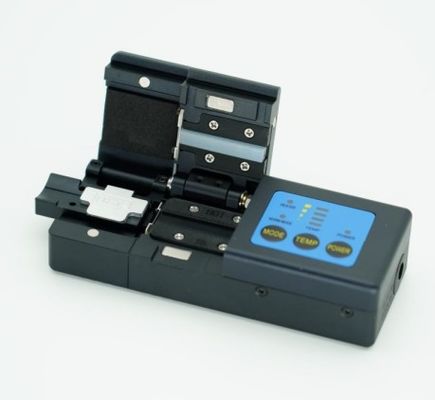

Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 0 Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 1
Fiber Optic Equipment Fibre Optic Patchcord FC SC ST LC Connector Grinder For Fiber Optic Jumper Production Line

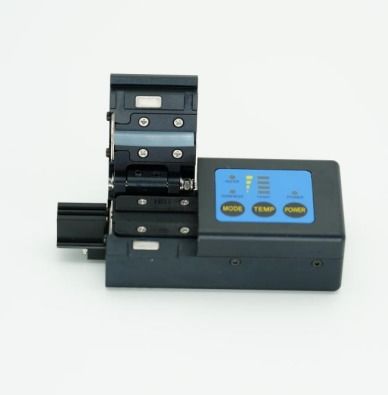

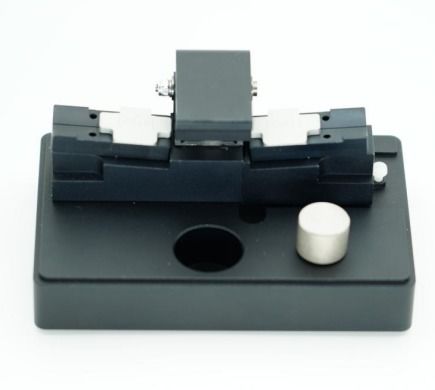

Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 2 Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 3
The auto optical fiber stripper is specially designed for end-span strip of single and ribbon fiber automatically with length operation to 35mm. It maintains high tensile strength of optic fiber when stripping, and prevents cracks on the fiber surface. This auto stripper is ideal for laboratories and factories involved in fiber optic product research and production.
Product Features
  • Suitable for stripping 2-12 core ribbon fiber, compact and lightweight design
  • Utilizes linear bearing guidance and hot stripping methods to prevent fiber damage
  • Efficient coating layer removal with high-quality results
  • Capable of both whole strip and window stripping functions
  • Durable, easily replaceable blades
  • 80% reduction in stripping force compared to previous models
Get a free Quotation
Polishing Effect
1. Fiber end face inspection results:
Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 4
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges.
2. ILRL Test Result:
Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 5
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥55dB ≥30dB
3. Geometry Test Result:
Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 6
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
Get a free Quotation Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 7
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company integrating research and development, production, after-sales service and technical services. We provide high-quality products, excellent after-sales service, and free technical support for fiber optic connector production challenges.
Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 8 Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 9
Certifications
Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 10
About shipping:
We typically use DHL, FEDEX, UPS, EMS, TNT or Sea shipping services. You may provide your courier account, and we'll select the most cost-effective option based on quantity.
Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 11 Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 12
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
Shipping takes 4 to 6 days via DHL or FedEx. Time may vary based on order quantity.
5. How do we pay?
Payment options include advance booking or multiple methods such as T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, accessories provided at cost.
7. Do you provide customized services?
Yes, we provide customization based on customer requirements.
Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 13 Thermal Jacket Auto Fiber Stripper for Single and Ribbon Fiber with 80% Reduced Stripping Force 14
