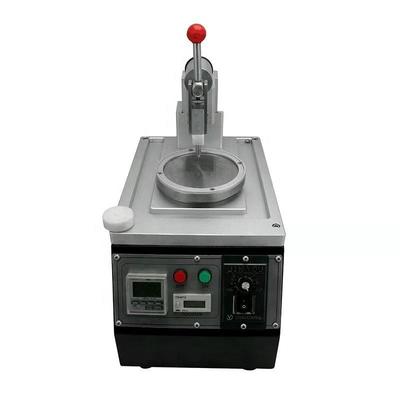

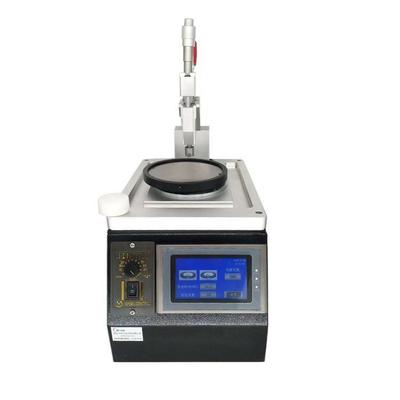

40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications

1
MOQ
$725.45-765.25
Prix
40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Alimentation: 110~220V C.A. 50Hz/60Hz
Puissance électrique: 40W
Taille: 340*220*460mm
Poids: 25 kg
Taille de polissage de plat: 127 mm
Température de travail: 8°C à 45°C
Humidité relative: 15%~85%
Paramètres de temps: 99 min 99 sec (maximum)
Statut de travail: 0,25 g 5 ~ 100 Hz 10 minutes
Statut d'arrêt: 0,50 g 5 ~ 100 Hz 10 minutes
Type de connecteur: Sc/FC/ST/LC/E2000/SMA905/MU
Numéro de modèle: CLX-10
Poids net: 25 kg
Alimentation: 110~220 VCA 50 Hz/60 Hz
Mettre en évidence:

40W Electric Power Fiber Optic Polishing Machine

,

127mm Polishing Plate Fiber Optic Polishing Machine

,

340*220*460mm Size Fiber Optic Polishing Machine
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: chuanglixun
Certification: RoHS
Numéro de modèle: CLX-10, CLX-10
Conditions de paiement et expédition
Description de produit
High Quality Multi Function Mini Buffing Bench Polishing Machine for Optical Fibers
40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 0 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 1 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 2 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 3 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 4 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 5 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 6
Technical Specifications
Model Number CLX-10
Size 340mm × 220mm × 460mm
Net Weight 25kg
Power Supply 110~220VAC 50Hz/60Hz
Electric Power 40W
Application Fiber Optic Polishing
Work Temperature 8℃~45℃
Connector Type SC/FC/ST/LC/E2000/SMA905/MU
Relative Humidity 15%~85%
Time settings 99 min 99 sec (Max)
Working Status 0.25g 5~100Hz 10min
Stopping Status 0.50g 5~100Hz 10min
Warranty Two-year warranty
MOQ 1 set
40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 7 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 8 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 9 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 10 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 11 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 12 40W Electric Power Fiber Optic Polishing Machine with 127mm Polishing Plate and 340*220*460mm Size for FTTH Applications 13
Frequently Asked Questions
Are you a factory or a trader?
We are the factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4 to 6 days. Shipping time may vary based on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
The warranty period is 1 year (providing free repairs, excluding consumables). After warranty, we continue to provide accessories at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements.
