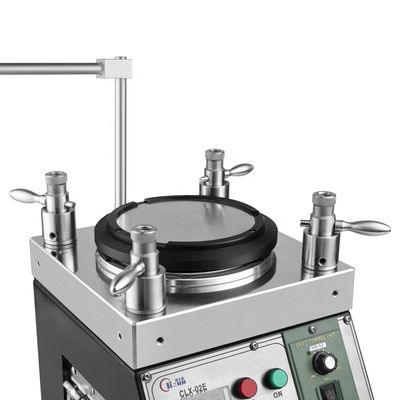

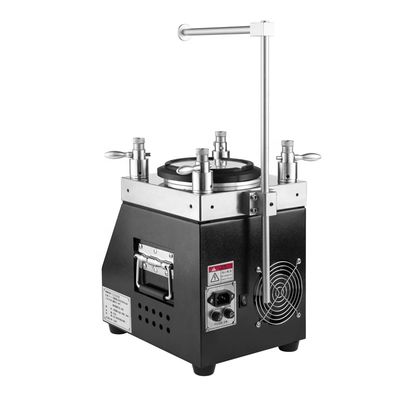

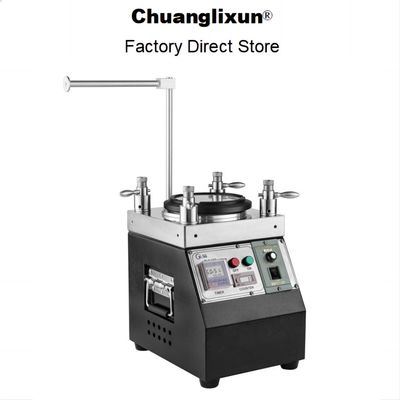

The Fiber Optical Polishing Machine is based on international universal standards and long-term hands-on experience. It exceeds requirements for GR-326 end face geometry, and adapts to four corners compression and new I.P.C. holder technology yielding the best results in the industry. No variability in result when polishing 1 or 24 connectors, with stable jig installation and compact size. This machine is designed for mass production needs, and can process excellent connector end-face of LC, SC, ST, FC, MTRJ, E2000 and other types as well as angle polishing.
Product Features
- High-precision Fiber Optic Polishing Equipment

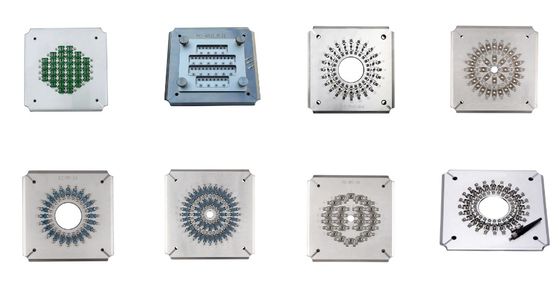

- Quick change polishing jigs
- Polishing trails obey the planet orbit with adjustable rotation speed (normally 140RPM)
- Maximum polishing capacity: 48 pcs for MU and LC connectors, 36 pcs for SC, FC, ST
- High efficiency with first pass yield for end face quality reaching 98%～100%
- IPC Structure fiber polishing fixture with independent compression of each connector
- Fiber optic connector polishing 3D pass rate ≥ 98% (100% Typical, according to IEC)
- APC return loss ≥60dB, PC(UPC)return loss ≥55dB, Insertion loss ≤0.20dB (typical)
- High quality stainless steel material after heat-treatment ensures high precision & durability
- Excellent stability with eight to ten years lifetime
Product Specifications
| Machine Type |
CLX-02E |
| Machine Size |
L 240(mm) × W 240(mm) × H 260(mm) |
| Net Weight |
28kg |
| Power Input |
110~230VAC 50Hz/60Hz |
| Electric Power |
126w |
| Relative Humidity |
15%~85% |
| Work Temperature |
8℃~45℃ |
| O.D. of Rotation Plate |
127 mm（5 inch） |
| Time Settings |
99 min 99 sec (Max) |
| Speed for Rotation Plate |
140 rpm |
| Height of Plate Jumpiness |
< 10 um |
| Pressure Configuration |
21 ~ 36 N/cm2 |
| Noice unloading Less |
50 dB Libration |
| Working Status |
0.25g 5~100Hz 10min |
| Stopping Status |
0.50g 5~100Hz 10min |
Get a free Quotation via Us >>> GO
Polishing Effect
1. Fiber end face inspection results:
High-quality end-face polishing, no white spots, no scratches, the fiber edge is clearly visible
2. ILRL Test Result:
| Connector Type |
SM/UPC |
SM/APC |
MM/UPC |
| Insertion Loss |
≤0.20dB |
≤0.20dB |
≤0.50dB |
| Return loss |
≥55dB |
≥55dB |
≥30dB |
3. Geometry Test Result:
| NO. |
Parameters |
UPC Criterion |
APC Criterion |
| 1. |
Radius of Curvature |
5-25mm |
5-12mm |
| 2. |
Apex Offset |
0-50μm |
0-50μm |
| 3. |
Fiber Height |
-100~+50μm |
-100~+50μm |
| 4. |
Angle |
n/a |
8.00+/-0.50° |
